    Classic Glass Walls

    Modular Glass Wall System

    A clear choice for speed, precision, and performance.

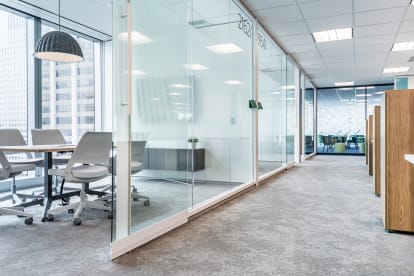

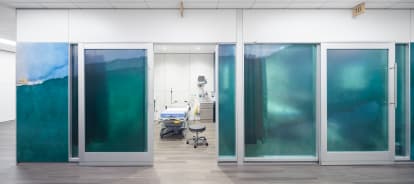

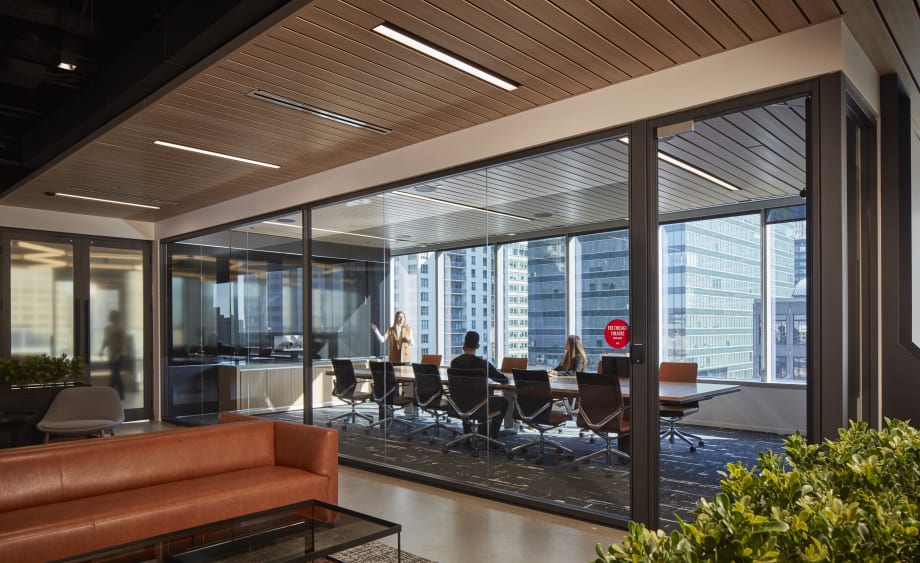

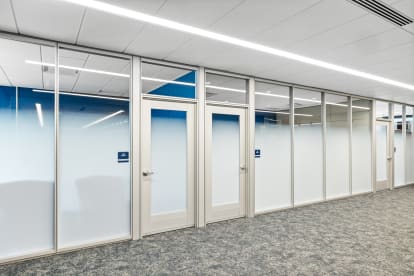

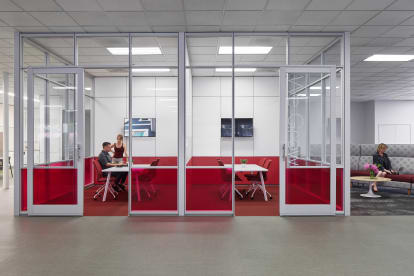

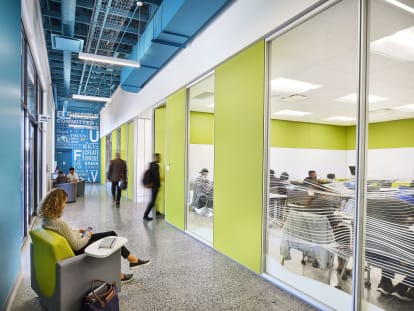

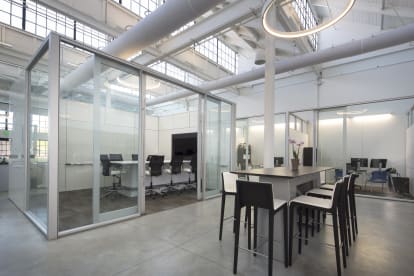

    DIRTT’s center-mounted glass wall delivers the performance you need today with the ability to adapt for tomorrow. The four-inch Classic Glass Wall system is tailored to fit your design with precision to ¹⁄₁₆”. As part of the DIRTT construction system, it integrates easily into your space, reducing risk and schedules while increasing cost certainty.

    Features

    • Wall system includes aluminum frames and center-mount glass panels.

    • Seamlessly integrates with the rest of the DIRTT construction system.

    • Height and width of the wall frame can be adjusted to conform to all base building elements.

    • Components are precision manufactured to accommodate base building conditions.

    • Modularity supports adaptive reuse and future flexibility.

    Customization

    • Wall width and height configuration is fully customizable.

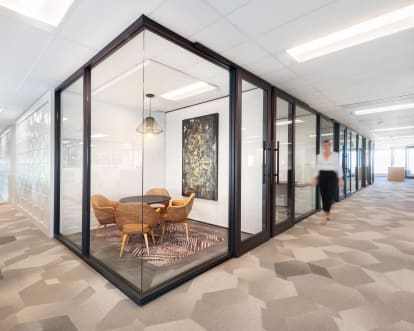

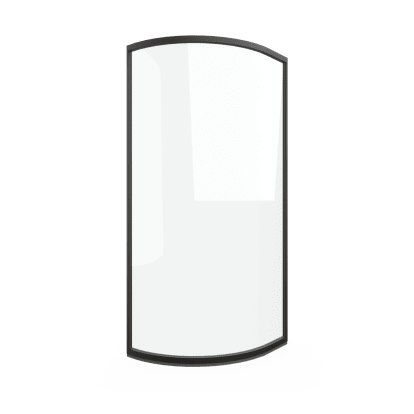

    • Available in customizable rectilinear, curvilinear, and blade profiles.

    • Header can attach directly to ceiling, soffit, bulkhead, or structure.

    • Choose from clear and low-iron varieties of tempered or laminated glass in ¼” (6 mm), ⅜” (10 mm), or ½" (12 mm) thicknesses.

    • Custom glass options available.

    • Limit transfer of smoke with our non-rated, smoke partition.

    Finish Options

    Technical Overview

    • Standard wall thickness: 4” (102 mm)
    • Module width 6” (152 mm) - 60” (1.52 m)
    • Maximum frame height: 12' (3.66 m)
    • Wall height adjustability -⅜” (10 mm) +1 ⅛” (29 mm)
    • Standard header uses ceiling track, ceiling grid clips, or metal stud kickers
    • Standard base track secures to the base building with carpet grippers, double-sided tape, or seismic anchoring
    • Sound Transmission Class (STC) rating: 30-35
    • SCS Indoor Advantage Gold Certified
