Pivot Doors

Center and Off-Center Pivot Doors

A flexible and elegant choice for space planning.

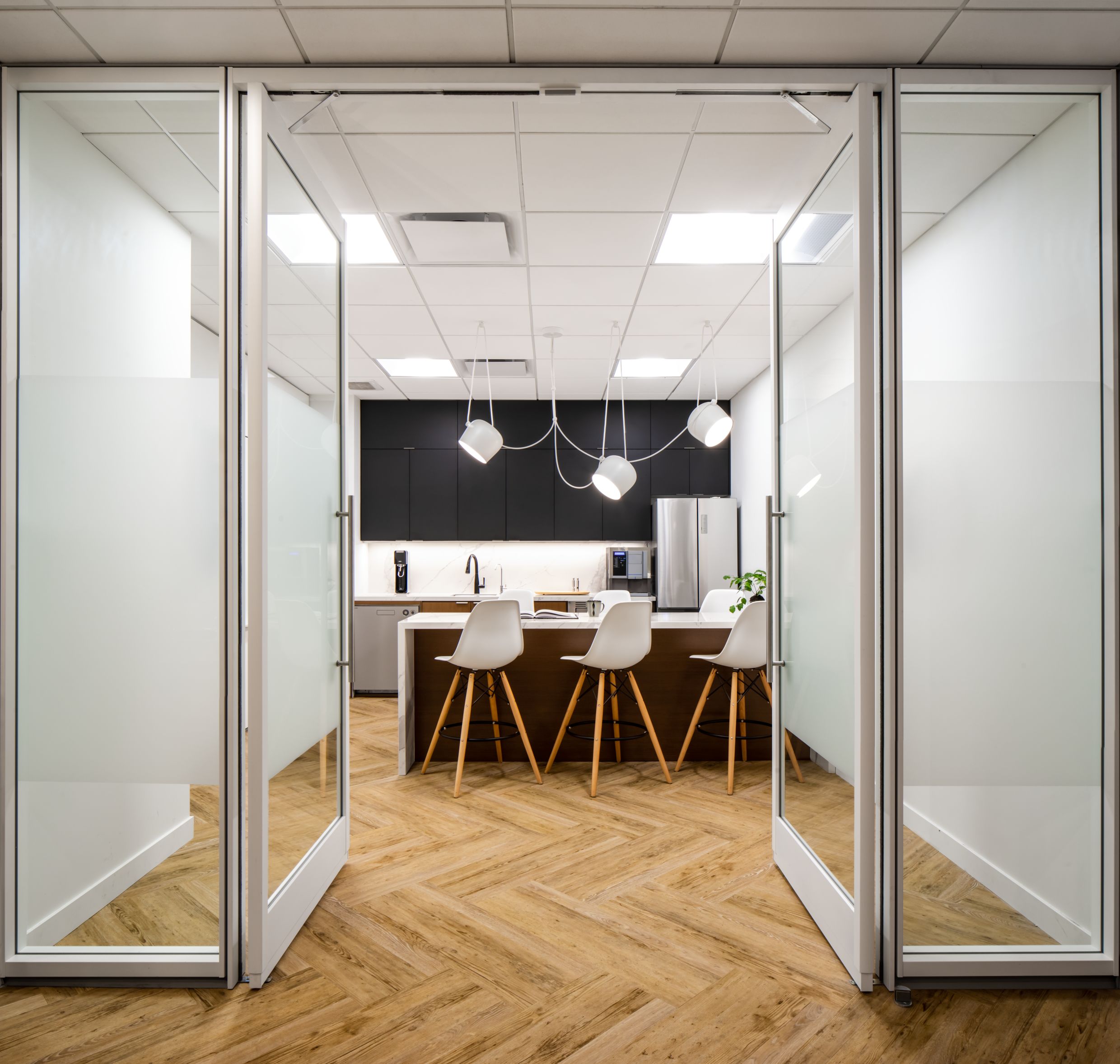

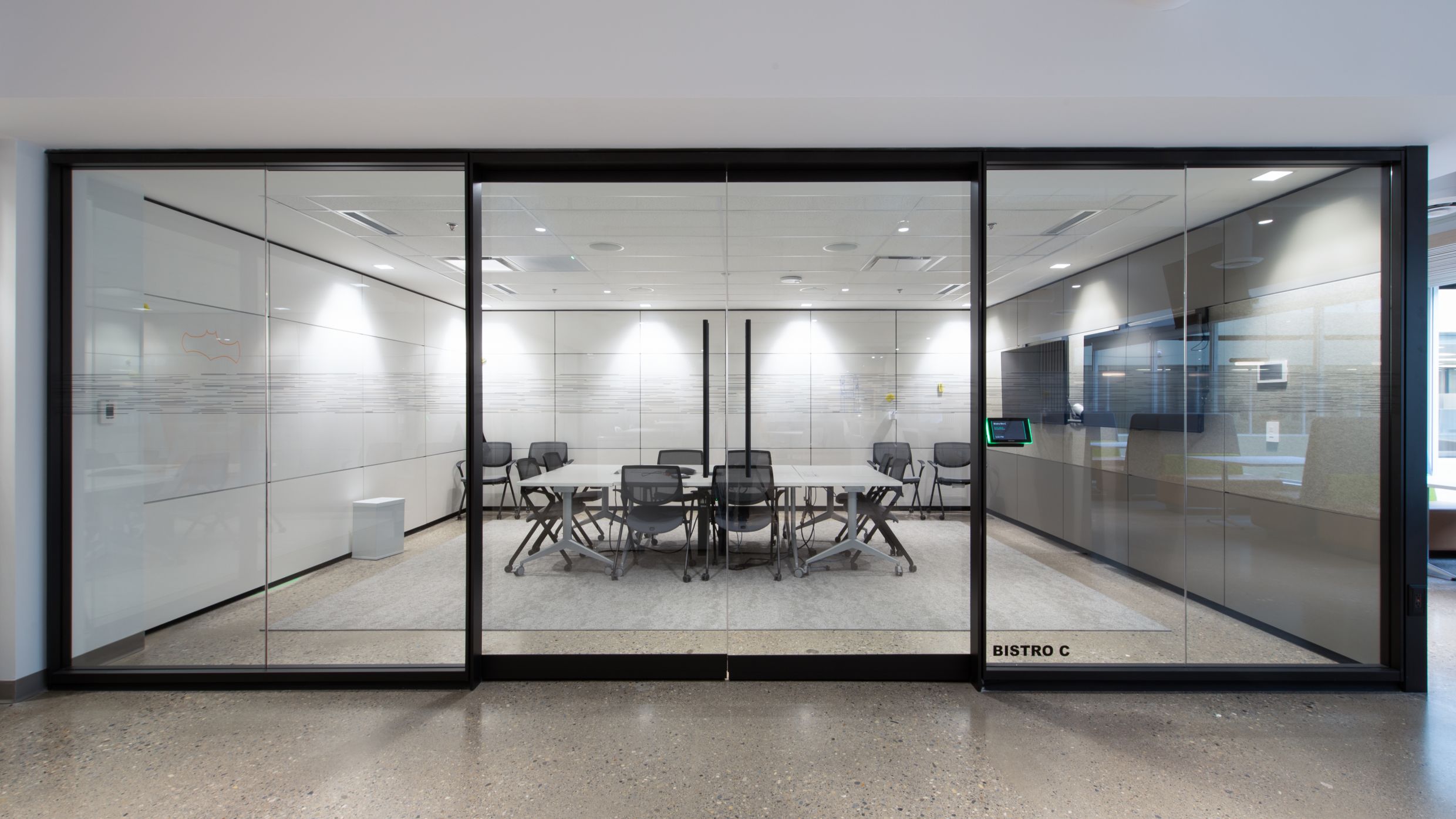

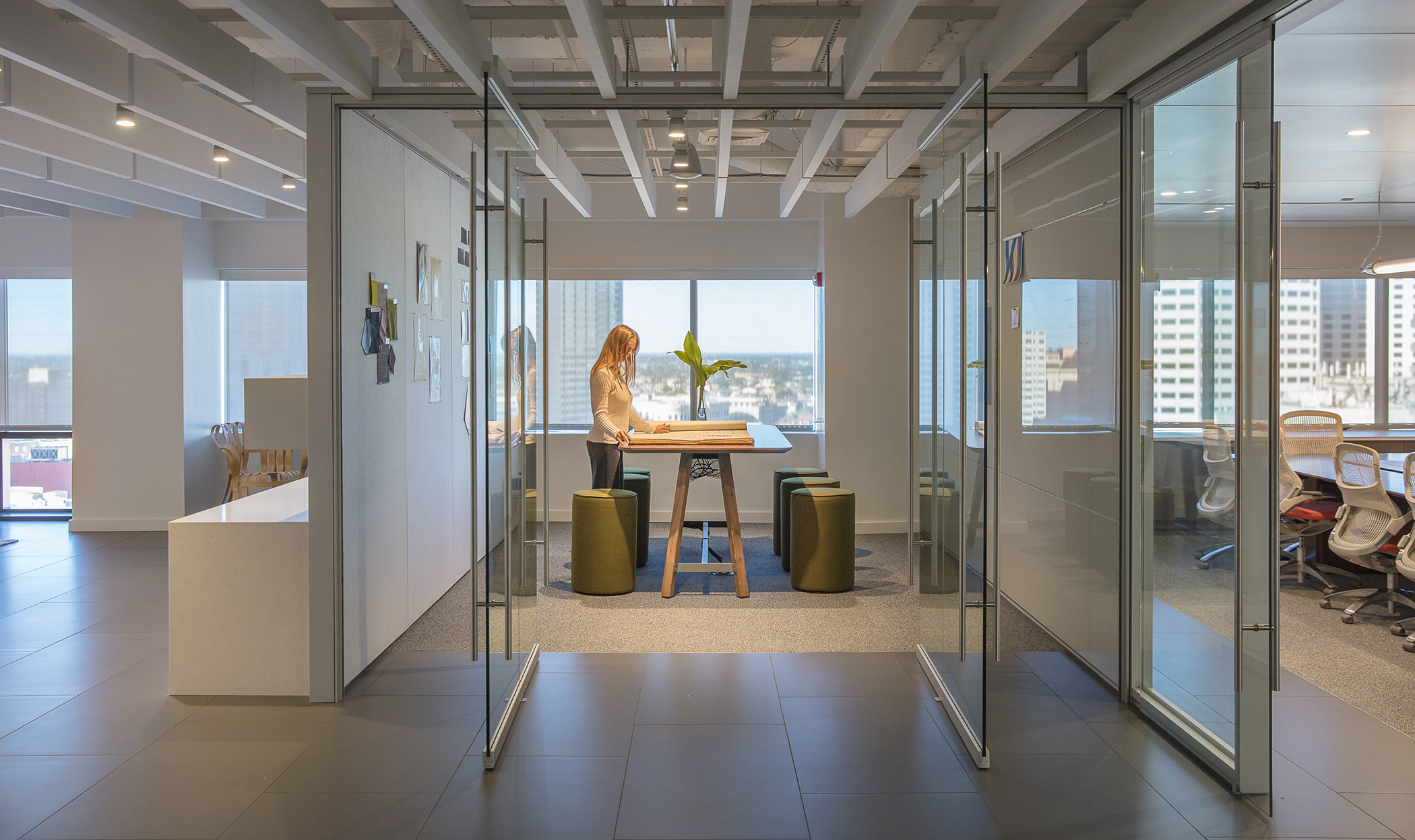

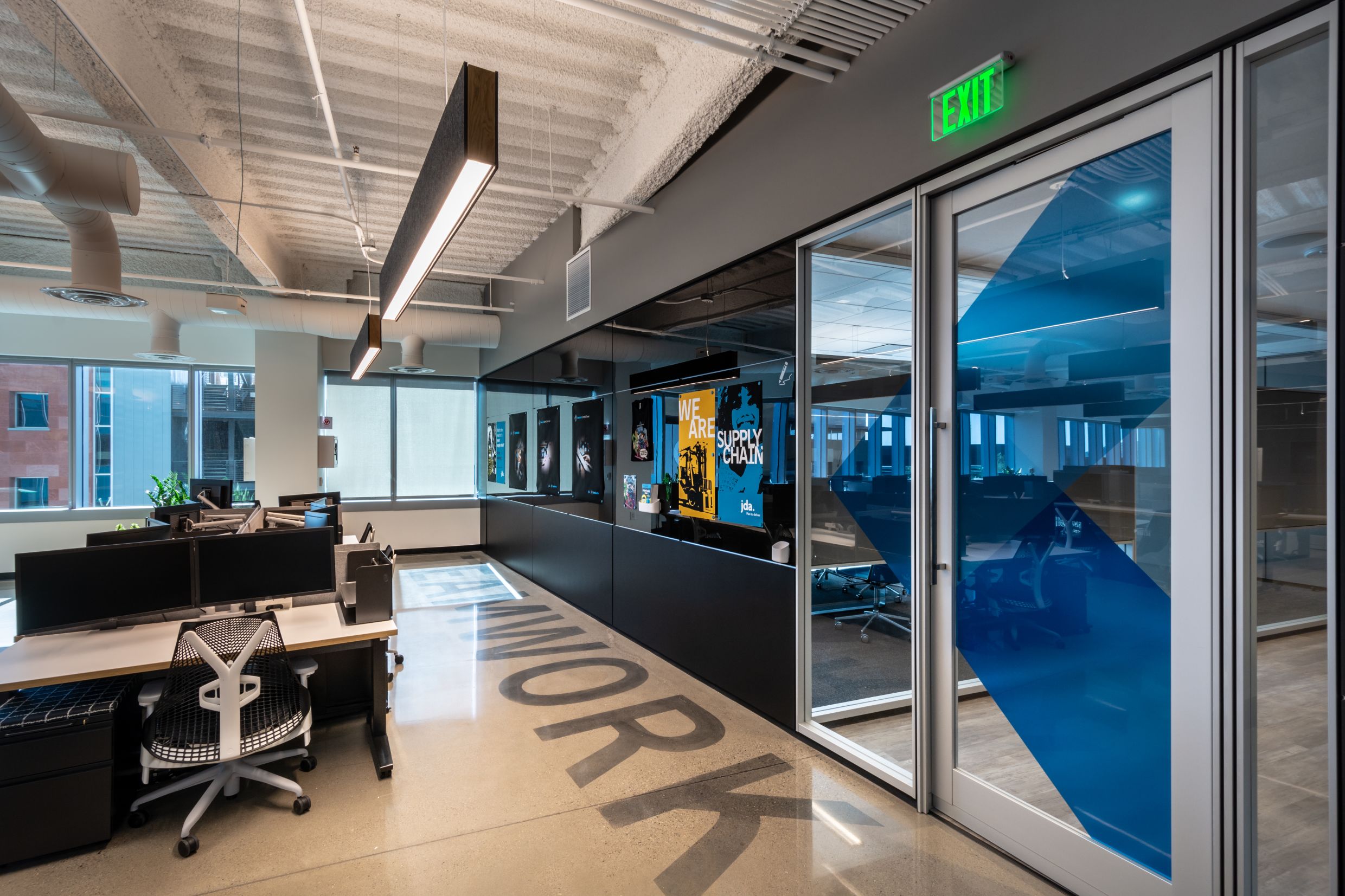

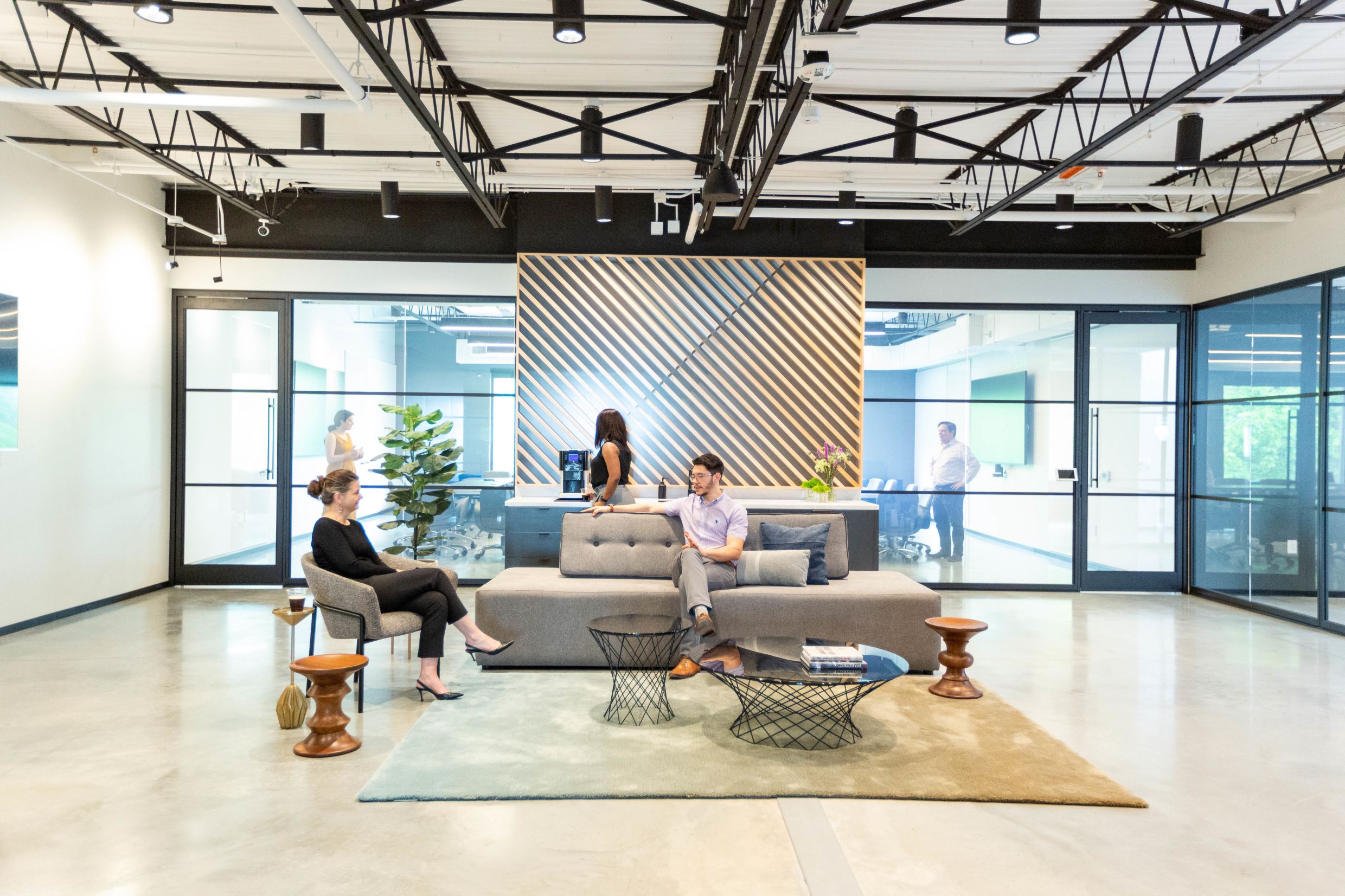

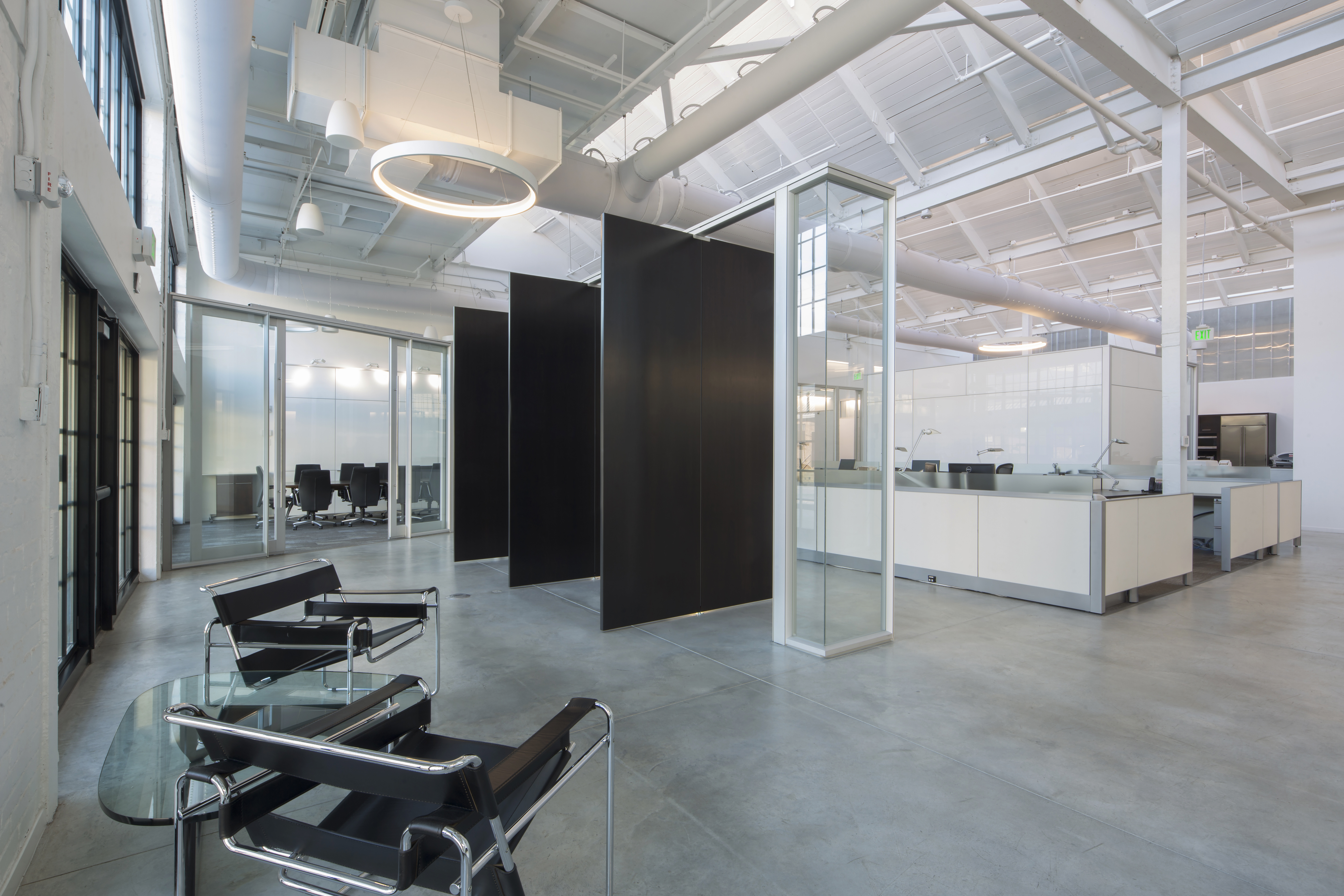

Get the design you want and the accessibility you’re looking for with DIRTT Pivot Doors. Designed for a sleek look and easy use, pivot doors offer wider openings than sliding doors. Available in single or double configurations, with center and off-center options, these doors are a flexible and elegant choice for space planning.

Features

  • Roller latch mechanism and concealed closer are embedded into the top of the supporting door frame.

  • Pivot hardware is floor-mounted and doesn’t have to be embedded in the floor slab.

  • Aluminum door base is adjustable to accommodate base building variance.

  • Can be specified to meet SCS Indoor Advantage Gold certification.

Customization

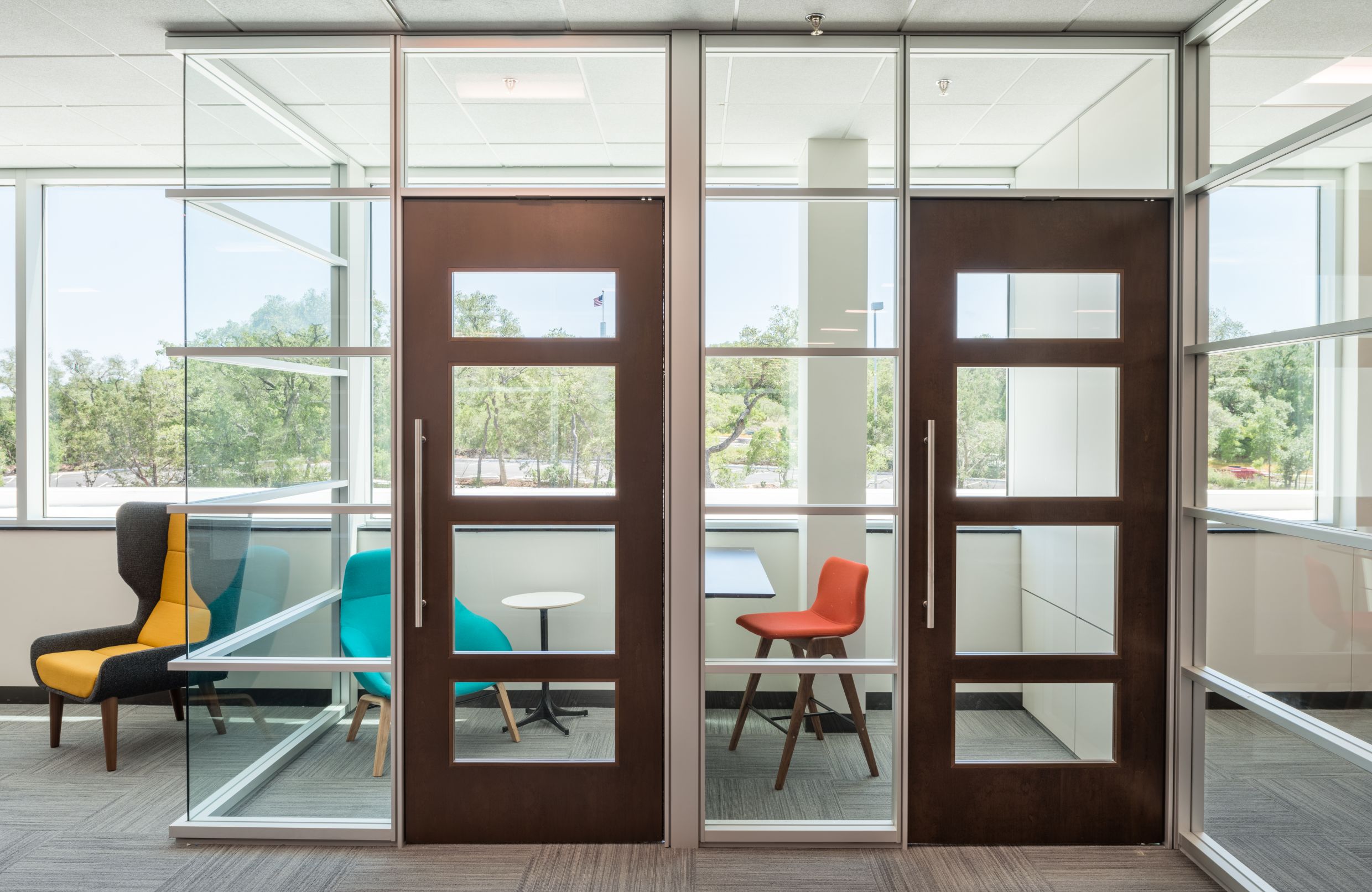

  • Choose from solid core wood doors (with optional glass cut out), aluminum doors with glass, and frameless glass doors.

  • Aluminum doors available with 2”, 4", or 6" stiles.

  • Available in original or thin-profile door types.

  • Apply anodized or powder-coated muntins to glass doors.

  • 90-degree or 180-degree door-opening options.

  • Choose from a range of pull and lever hardware options and optional automatic closer.

  • Framed doors use: ¼” (6 mm), ⅜” (10 mm), or ½" (12 mm) tempered or laminated glass.

  • Frameless glass doors use ½” (12 mm) tempered glass.

Finish Options

Technical Overview

  • Standard frame module width: 40" (1.02 m)
  • Standard frame module height up to: 120” (3.05 m)
  • Standard frame depth: 4” (102 mm)
  • Standard door slab width: 36” (914 mm)
  • All doors require hardware to function properly
