Combination Walls

Modular Wall System

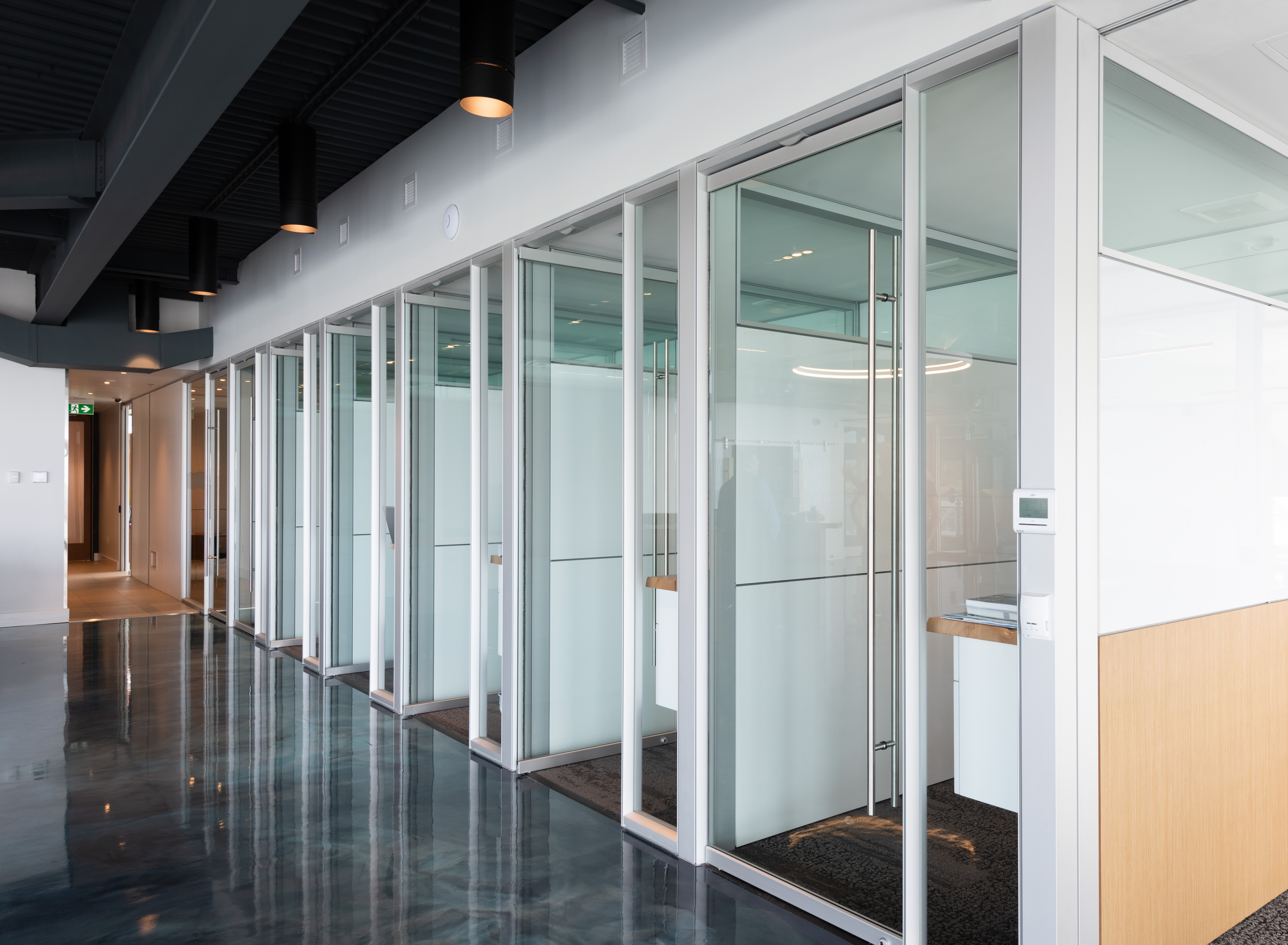

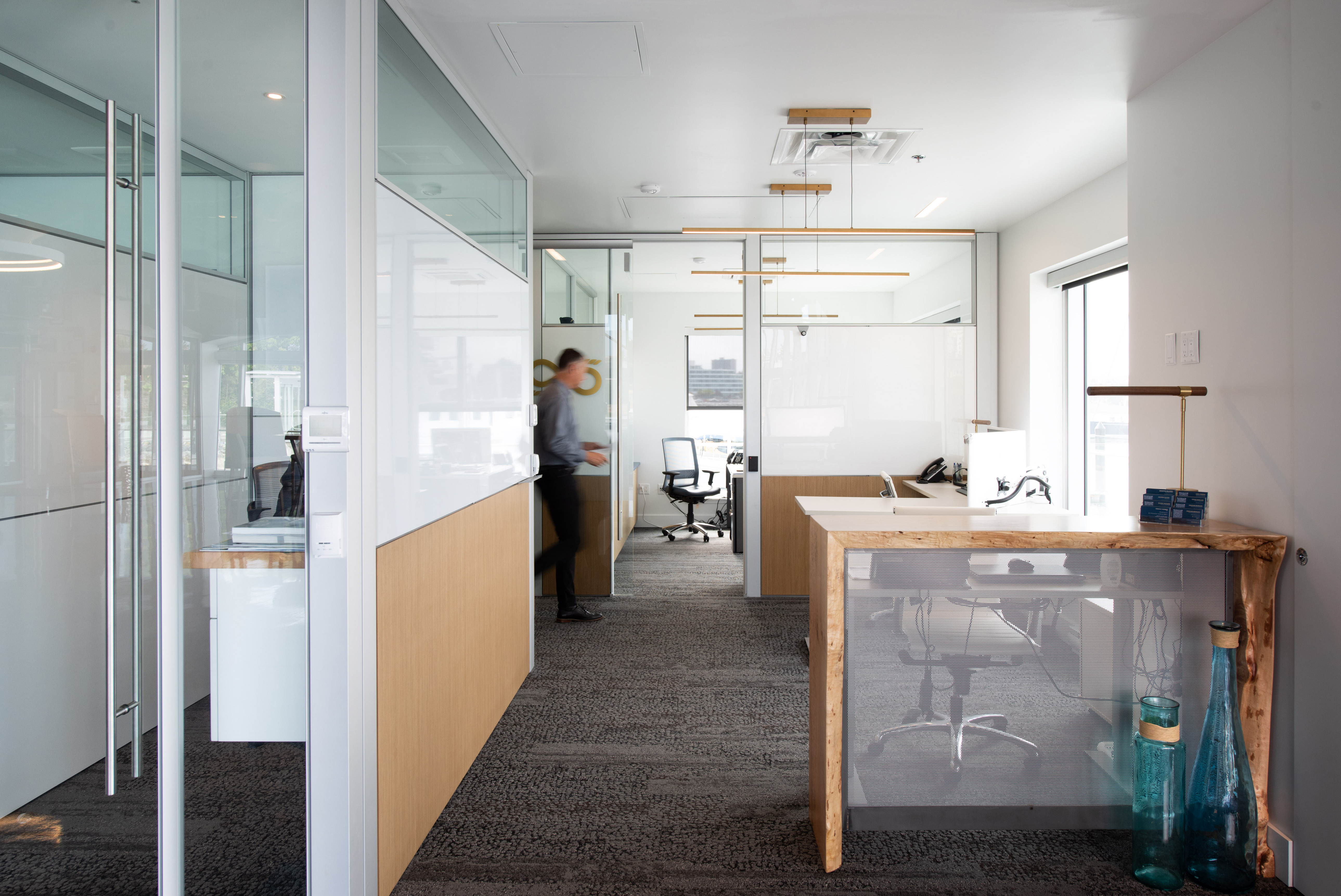

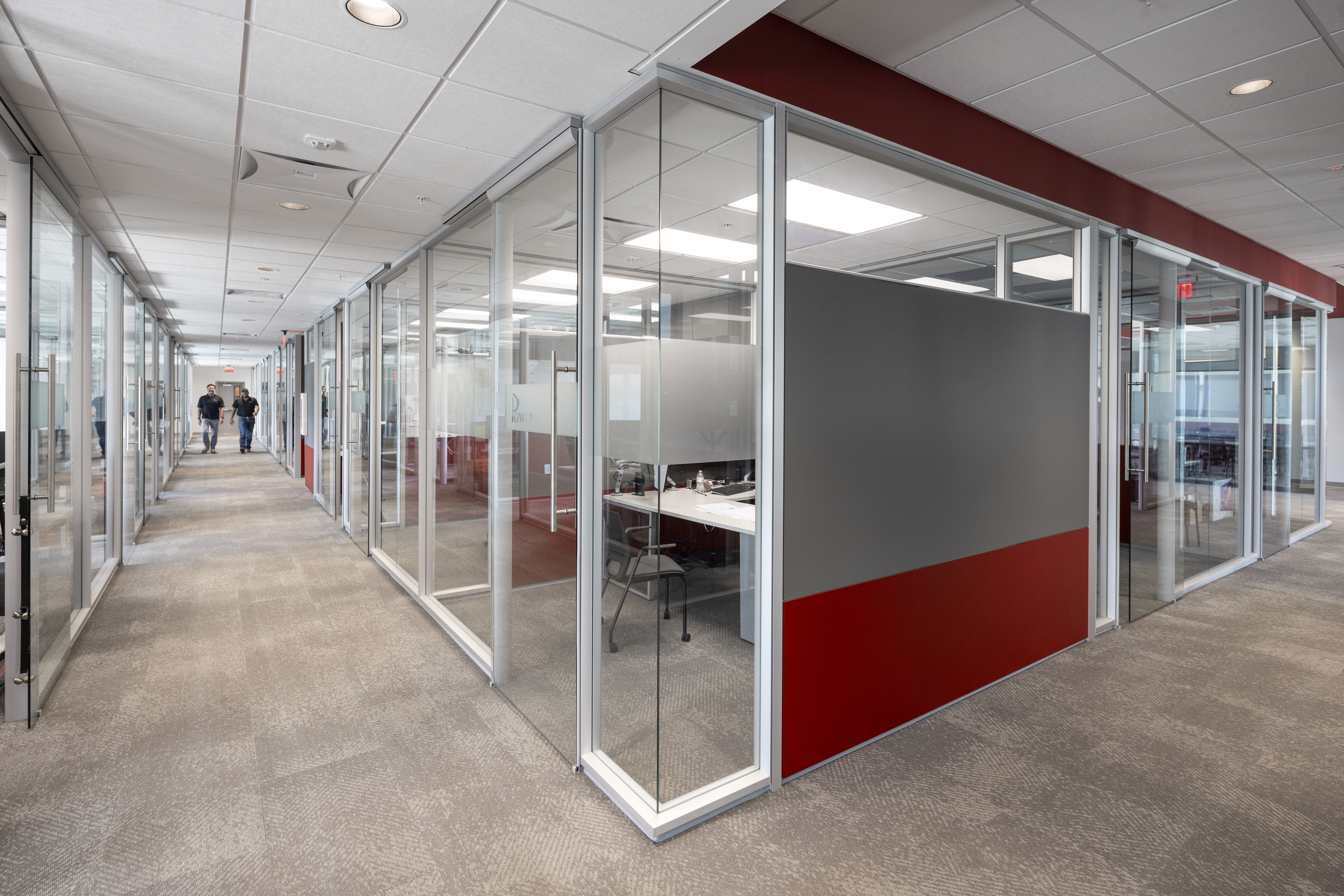

Combine solid and glass walls for the best of both worlds.

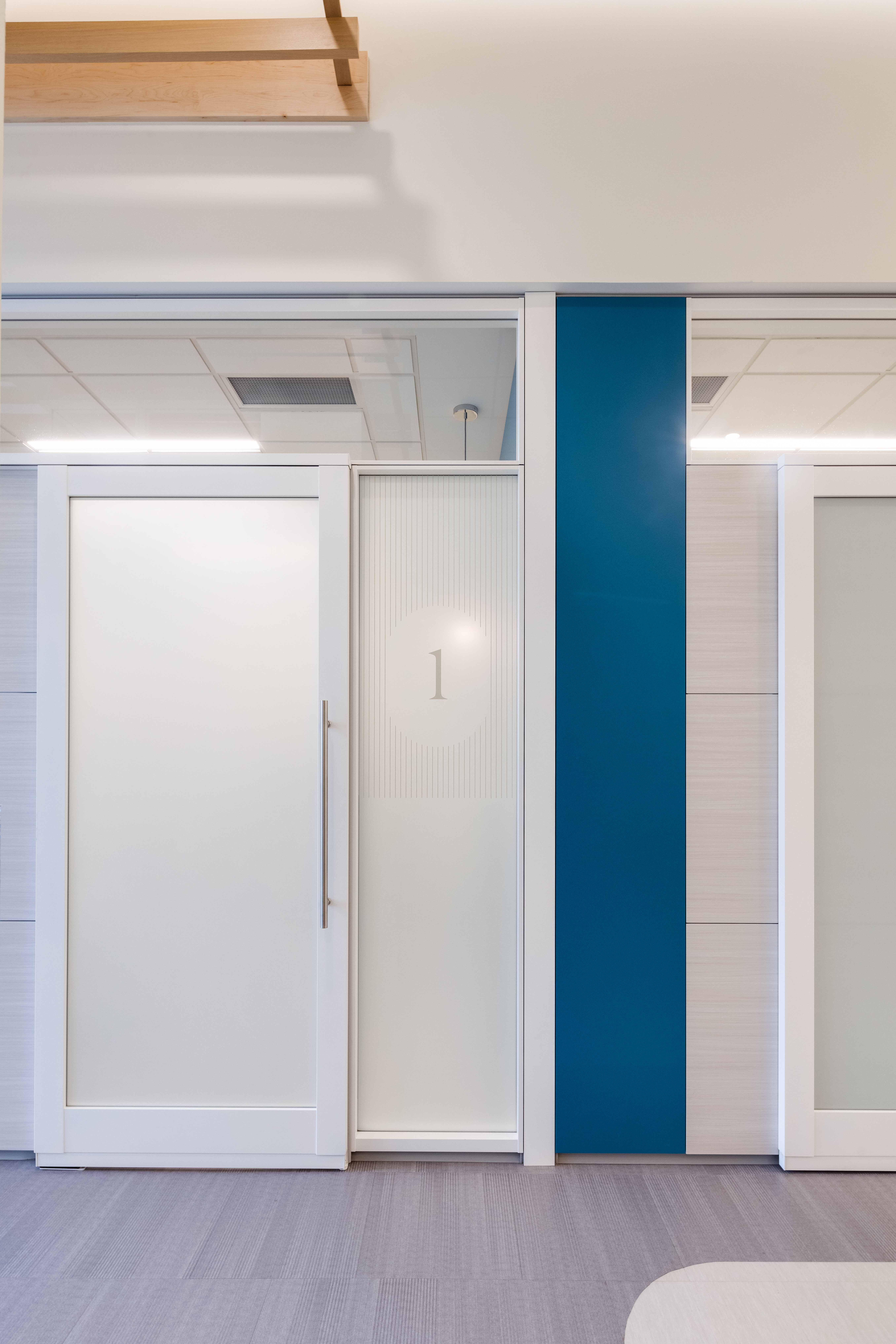

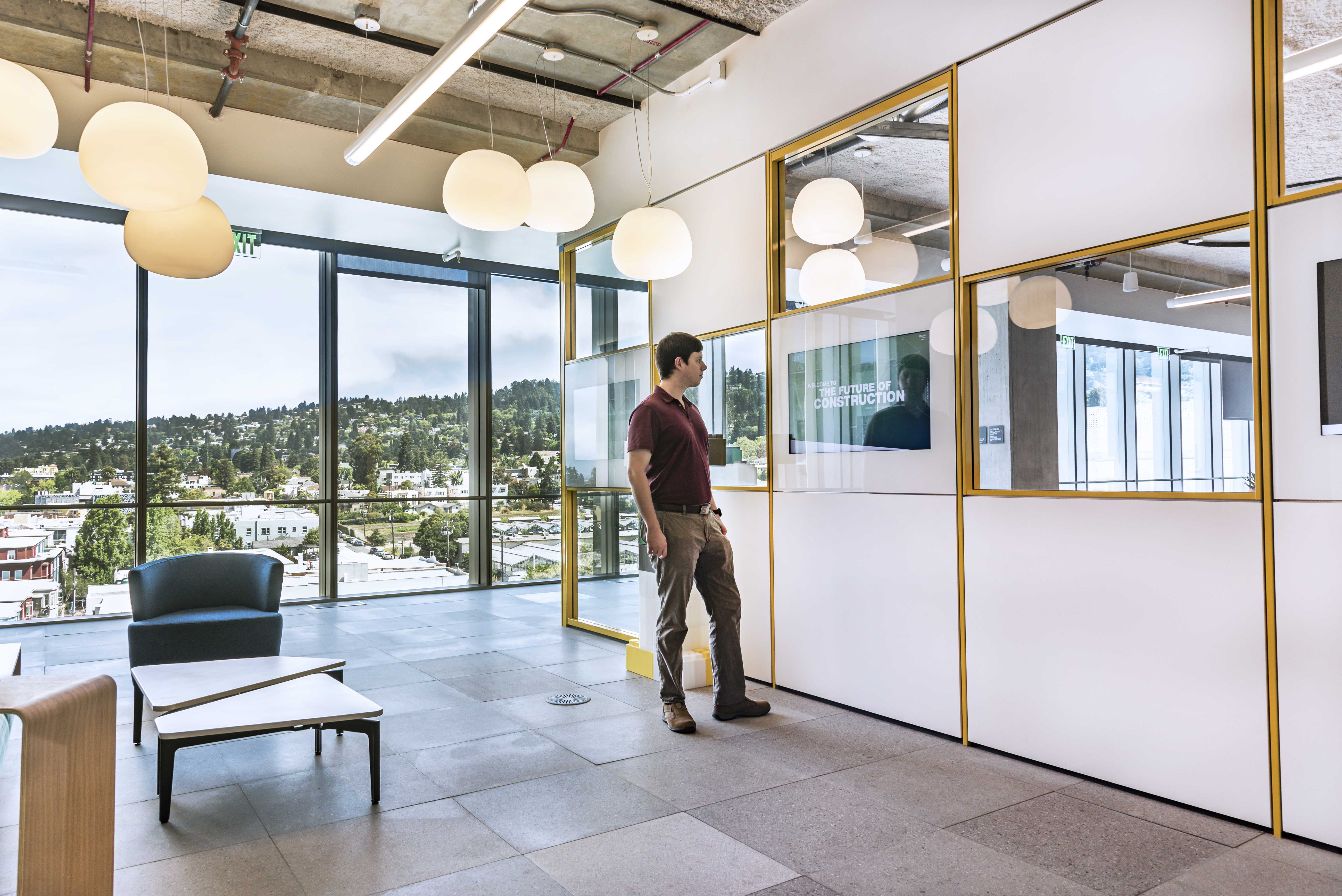

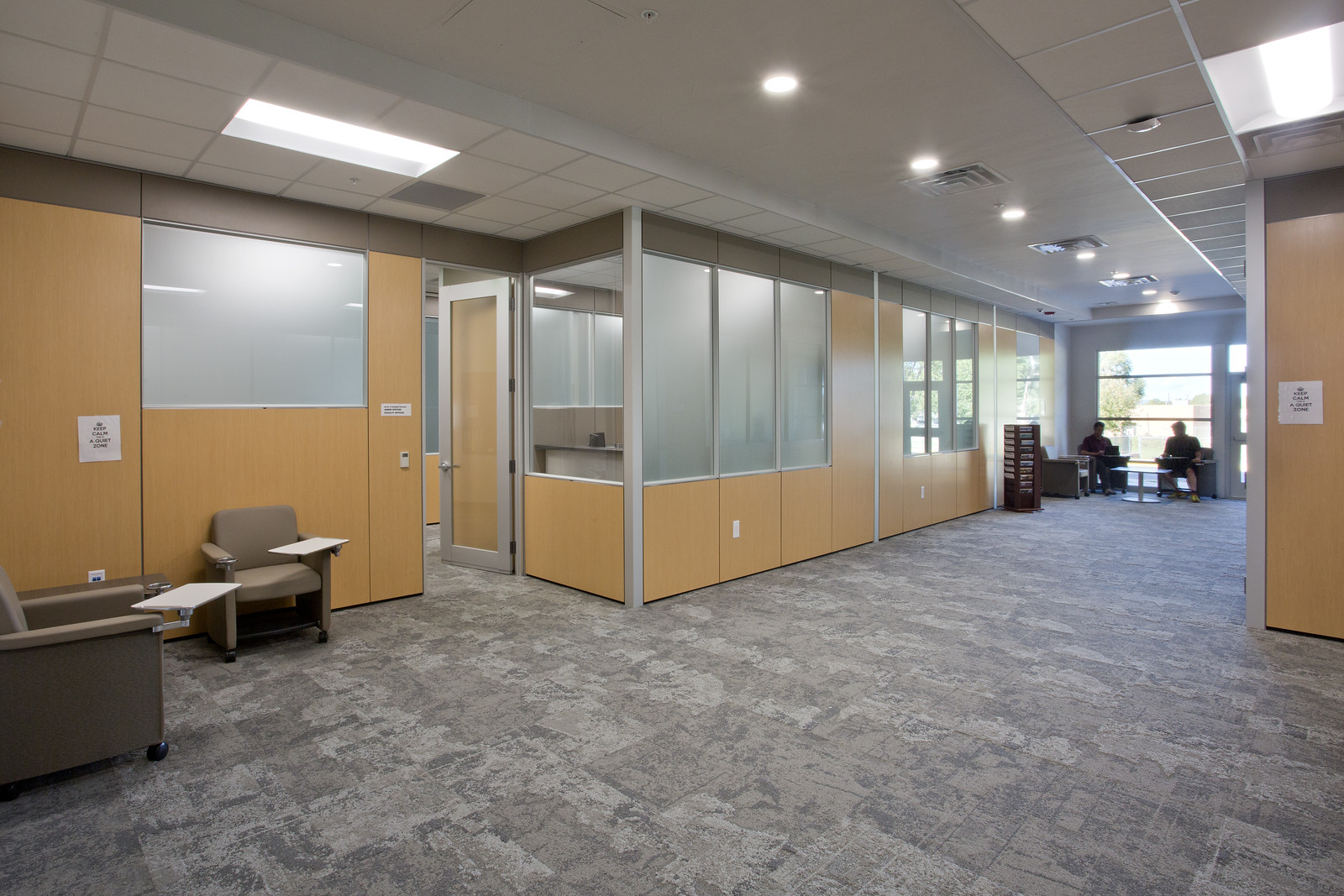

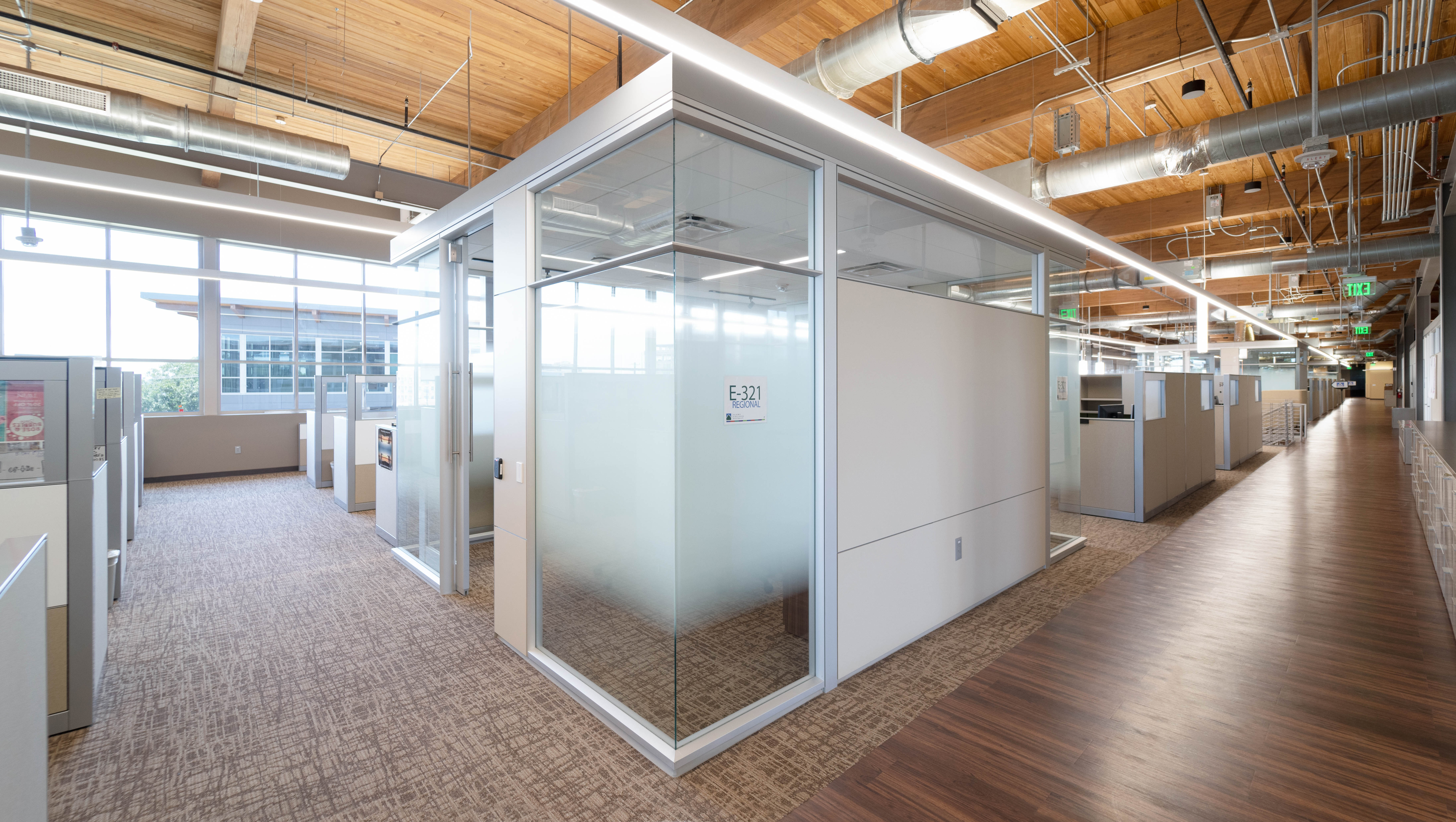

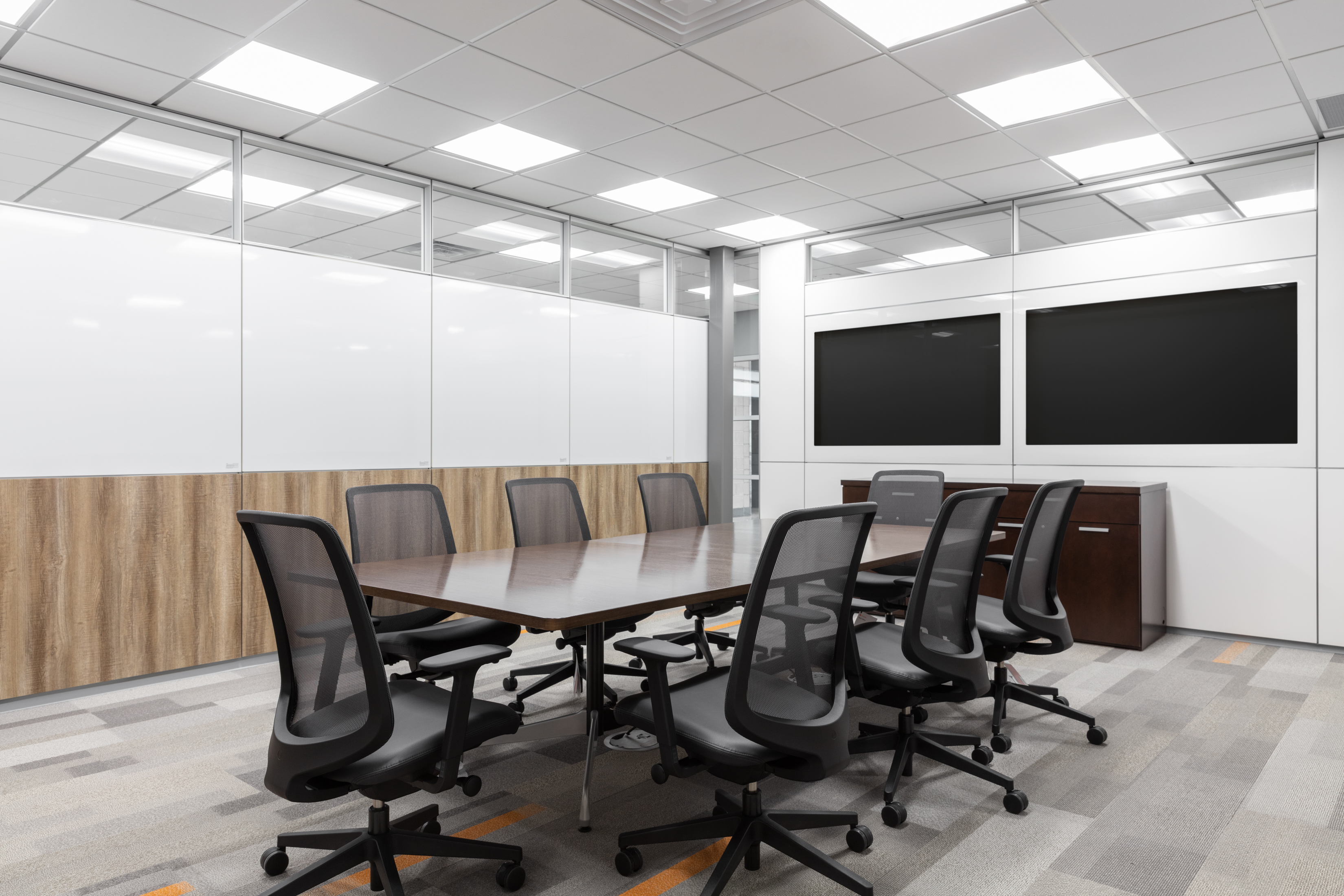

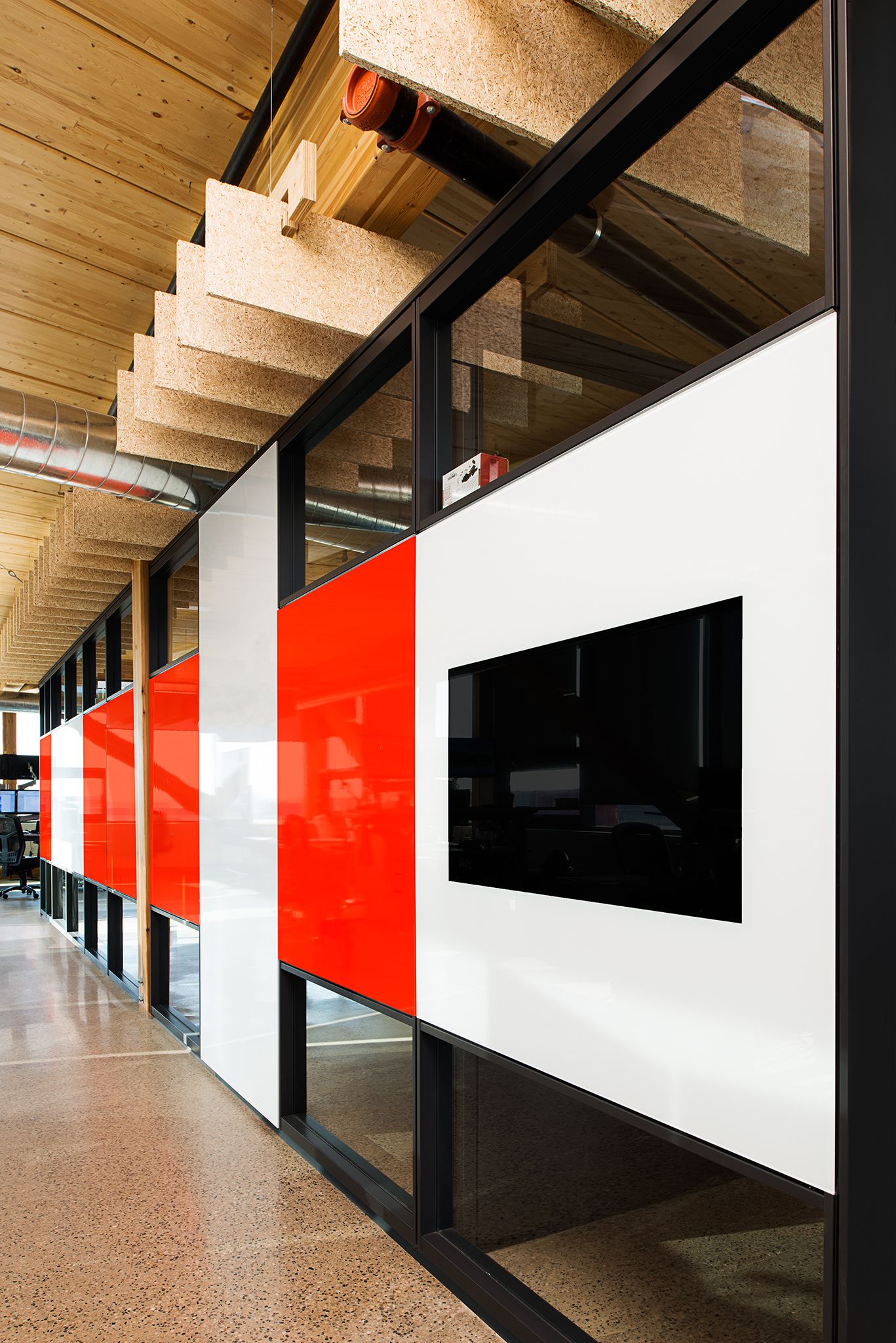

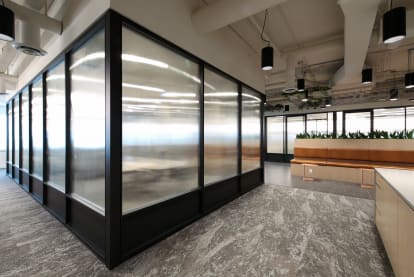

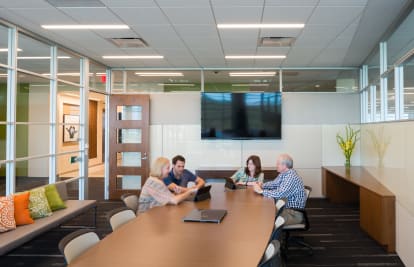

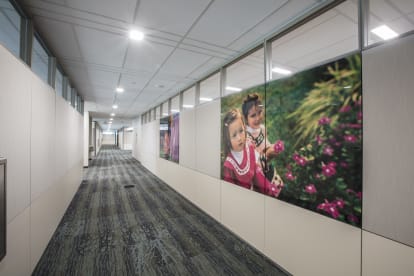

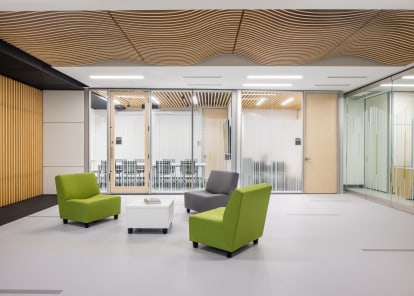

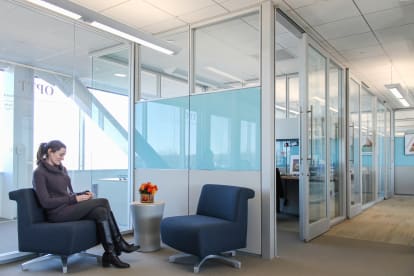

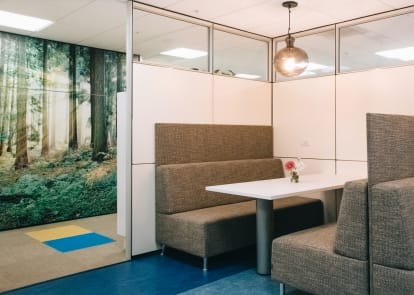

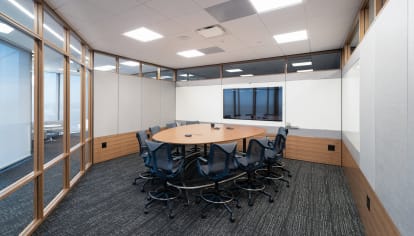

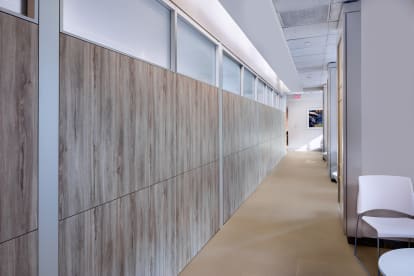

When you’re designing for a mix of privacy and transparency, DIRTT’s Combination Walls give you the best of both worlds. Get the space separation of DIRTT’s solid wall with the light transmission benefit of our glass wall. Whether you need a punched window or a clerestory at the top, you can customize our Combination Walls to fit any design. Plus, they offer all the benefits of the DIRTT system. Get long-term durability, enhanced performance, short lead times, and quick installations with the look and functionality you need.

Features

  • Wall system includes aluminum frames, insulation, finished wall panels, extrusions, and glass panels.

  • Height and width of wall frame and finish panels are dimensionally parametric dependent on substrate material and specified finish. 

  • Frames arrive on-site without panels to allow integration with building systems.

  • Components are precision manufactured to accommodate base building conditions.

Customization

  • Wall width, height, and panel configuration are fully customizable. 

  • Position and mix of center-mount glass, flush-mount double pane glass and solid panels can be fully customized.

  • Choose from clear and low-iron varieties of tempered or laminated glass in ¼" (6 mm), ⅜” (10 mm), or ½” (12 mm) thicknesses.

  • Available in rectilinear, curvilinear, and blade profiles.

  • Assemblies can be specified with vertical mullions or butt-joint glass-to-glass details.

  • Limit transfer of smoke with our non-rated, smoke partition.

Finish Options

Technical Overview

  • Standard wall thickness (with panels): 4” (102 mm)
  • Standard glass thickness: ¼" (6 mm), ⅜” (10 mm), and ½” (12 mm)
  • Module width: 6” (152 mm) - 48" (1.22 m)
  • Maximum module height: 10' (3.05 m)
  • Wall height adjustability: -⅜” (10 mm) +2 ⅝” (67 mm)
  • SCS Indoor Advantage Gold certified
